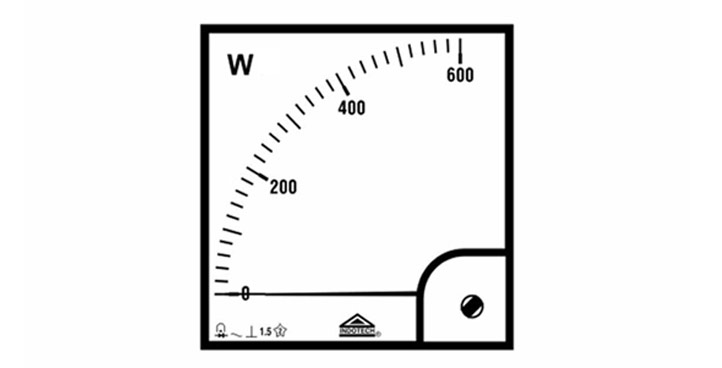

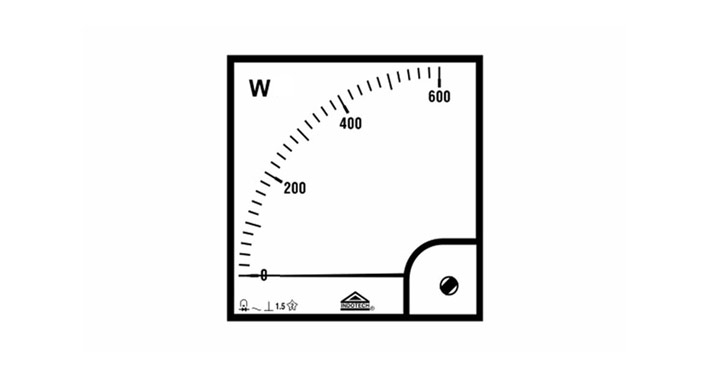

ANALOG WATT METER
Indotech KVA Meter measure the apparent power of AC devices in kilovolt-amperes (KVA). Apparent power is the combination of a circuit’s true power and reactive power. True power is the actual power dissipated in a circuit. Reactive power or imaginary power indicates how a reactive load drops voltage and draws current, but does not actually dissipate power.
TYPE OF METERS : ANALOG WATT METER
Dynamo-meter instruments for measurement of absolute power in Single Phase and Three phase systems for balanced/unbalanced load conditions.
SPECIFICATION : WATT ANALOG METER
| Test | Result |
| ACCURACY | Accuracy Watt meter: ±1.5% of Full Scale Power Factor Meter: ±2° of Phase Angle |
| MOVEMENT TYPE | Current coil in series of load & pressure coil across the load. Work on “Air cored Electrode Dynamo-meter” principle |
| RANGE | 1 A to 10 A AC Direct and for higher ranges through CT/1 A or 5 A Voltage (V): 110 V / 220 V/ 440 V and Through PT for Higher Voltage |
| STANDARD | IS-1248 |
Note :
- 72×72, 96×96 & 144×144 mm Square.
- Refer Price list for more details regarding models/ranges available.
